PrismJET VJ54

PrismJET VJ54: 54 IN. PRINTER

The wide-format printer for those who demand high quality – at a reasonable price. Amazing quality. Amazing price. And backed by our world-famous, friendly support.

We get great feedback from all of our clients all the time, they love the quality.

Chris Cary, Tanrae Designs

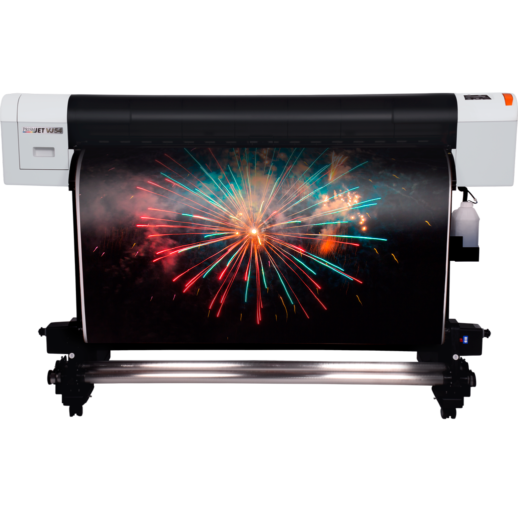

PrismJET VJ54

Produce beautiful vehicle wraps, wall coverings & decals, shirts, stickers, signage, and labels - with ease. Add stunning, vibrant color with our eco-solvent ultra inks, and you're set for life.



See the quality firsthand. Click now to order a FREE sample packet:

Send me samples

Skip the samples and order online direct today:

Place Order

Prints up to 53.58 in. with
a max roll width of 53.97 in.

Plug 'n play
no need for expensive on-site installation services

Includes our powerful LXi
design, print, & cut software.

VJ54 Key Specs

Power, clarity, convenience.

  • Print Technology: Drop-on-demand Micro Piezo Inkjet Technology
  • Single print head
  • Nozzle Configuration: 180 nozzles x 8 lines
  • Drop Mass Range (pl): 3.5 to 35.2
  • Head Heights: Low: 1.2 mm / High: 2.0 mm

Media

* : Max. media thickness is specified per head
† : Standard non-motorized roll-off system

  • Max. Media Width: 1371 mm (53.97”)
  • Max. Print Width: 1361 mm (53.58”)
  • Max. Media Thickness: 0.3 / 1.3 mm*
  • Media Measurements†: Ø 150 mm / 2” & 3” / 19 kg
  • Media Drying System: Individually controlled pre-heater, fixer & dryer (30 - 50 °C)

Performance

  • Max Resolution Quality (1440 x 1440): 27ft²/h
  • High Quality (720 x 1440): 3.9 m²/h (41.98 ft²/h)
  • Quality (720 x 1080): 6.0 m²/h (64.58 ft²/h)
  • Quality Production (720 x 1080): 7.9 m²/h (85.04 ft²/h)
  • Production (720 x 720): 11.8 m²/h (127.01 ft²/h)
  • Speed Production (720 x 720): 16.4 m²/h (176.53 ft²/h)

Ink

* : 1000 ml bag requires optional adapter
† : Average ink consumption @720 dpi - coverage of 67 %
‡ : For heavy duty applications where mechanical stress is involved, lamination is required. Stabilization is required prior to lamination.

  • Ink Type: Enudra Ink PRO
  • Ink Volume: 220 ml & 1000 ml * / 1000 ml *
  • Ink Colors: CMYK
  • Ink Consumption† 8 ml / m²
  • UV durability—without lamination: 3 years outdoor‡

Power Consumption

  • During Printing < 500 W
  • In Stand-by: 45 W
  • Warming Up ≤ 1550 W
  • Power Supply: AC 100-120 V / AC 200-240 - 60/50 Hz

Recommended Working Environment

  • Temperature: 22°C - 30 °C with Δt: max. 2 °C/h
  • Humidity: 40% - 60 % (no condensation) with ΔRH: max. 5% RH/h

Machine Measurements

  • Width x Depth x Height: 1916 x 685 x 1218 mm (75.43" x 26.97" x 47.95")
  • Weight: 82.3 kg (181.44 lbs)

Warranty & Support

We've got you covered.

  • Lifetime Support plus Initial 90-day Premium Support
  • One Year On-site Warranty
